Basic components of scaffolding HAKI IV

Post standard

CODE

DIMENSION(mm)

WEIGHT(kg)

Post standard

SLO 068
SLO 136
SLO 204
SLO 272

680
1360
2040
2720

4,5
7,8
10,9
14,2

Longitudinal beam (Ledger beam)

CODE

DIMENSION(mm)

WEIGHT(kg)

Longitudinal beam (Ledger beam)

POD 180
POD 240
POD 300

1800
2400
3000

8,4
11,0
13,5

Transom beam (double tube)

CODE

DIMENSION(mm)

WEIGHT(kg)

Transom beam (double tube)

PRI 120

1200

5,9

Transom beam (single tube)

CODE

DIMENSION(mm)

WEIGHT(kg)

Transom beam (single tube)

PRI 066
PRI 100

660
1000

4,2
4,6

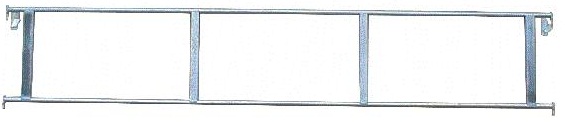

Guard frame

CODE

DIMENSION(mm)

WEIGHT(kg)

Guard frame

ZBR 066
ZBR 100
ZBR 120
ZBR 240
ZBR 300

660
1000
1200
2400
3000

5,1
6,1
6,3
10,8
13,6

Single tube guard rail (railing)

CODE

DIMENSION(mm)

WEIGHT(kg)

Single tube guard rail (railing)

ZBJ 066
ZBJ 100
ZBJ 120

ZBJ 180

ZBJ 240
ZBJ 300

660
1000
1200

1800

2400
3000

1,8
2,3
2,9

4,0

5,1
6,2

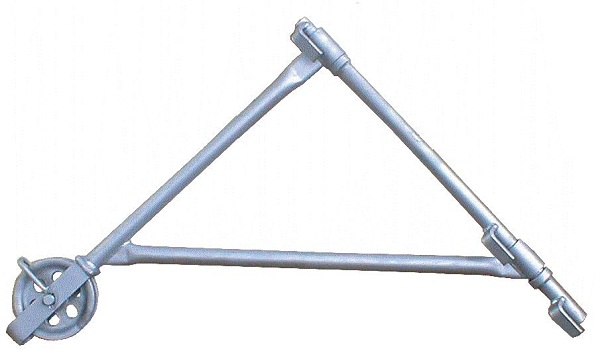

Pendant pulley (100 kg)

CODE

DIMENSION(mm)

WEIGHT(kg)

Pendant pulley (100 kg)

ZVK

-

6,7

Ladder

CODE

DIMENSION(mm)

WEIGHT(kg)

Ladder

ZEB 235

2350

12,1

Adjustable footing (Screw base -avg. 38mm)

CODE

DIMENSION(mm)

WEIGHT(kg)

Adjustable footing (Screw base -avg. 38mm)

PTSA 060

600

4,1

Wind bracing 3,80 m

CODE

DIMENSION(mm)

WEIGHT(kg)

Wind bracing 3,80 m

UHZ

-

2,9

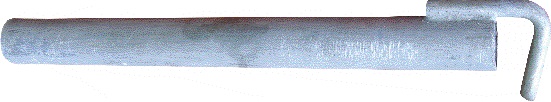

Anchors (Tie wall-rod, tie wall-u strap)

CODE

DIMENSION(mm)

WEIGHT(kg)

Anchors (Tie wall-rod, tie wall-u strap)

KOTA 060

KOTR

600

-

0,7

0,4

Tubes anchors

CODE

DIMENSION(mm)

WEIGHT(kg)

Tubes anchors

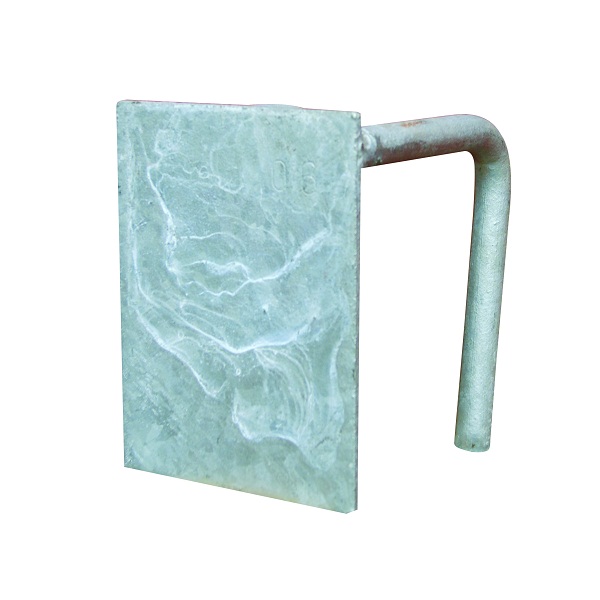

Toeboard clip (clamp)

CODE

DIMENSION(mm)

WEIGHT(kg)

Toeboard clip (clamp)

ZZ

-

0,187

Wooden floor

CODE

DIMENSION(mm)

WEIGHT(kg)

Wooden floor

PDD 066
PDD 100
PDD 120

1350x500
1150x600
810x600

11
15
18

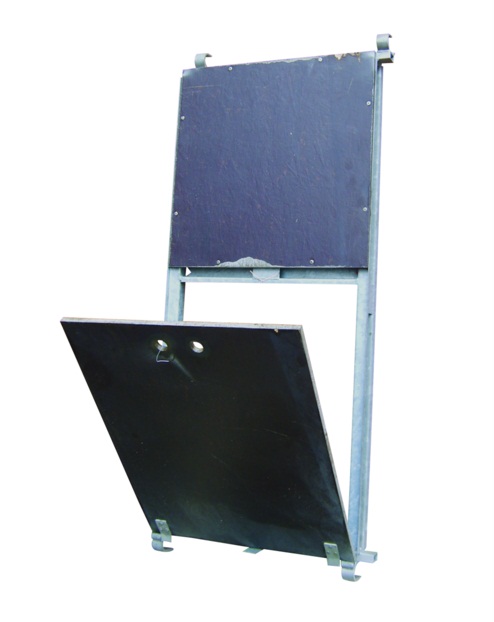

Floors (plywood) with hole (PDP), without hole (PDO)

CODE

DIMENSION(mm)

WEIGHT(kg)

Floors (plywood) with hole (PDP), without hole (PDO)

PDO 071
PDO 105
PDO 125

PDP 071

PDP 105
PDP 125

710x598
1050x598
1250x598

710x598

1050x598
1250x598

7,9
11,2
13,5

8,1

12
13,5
